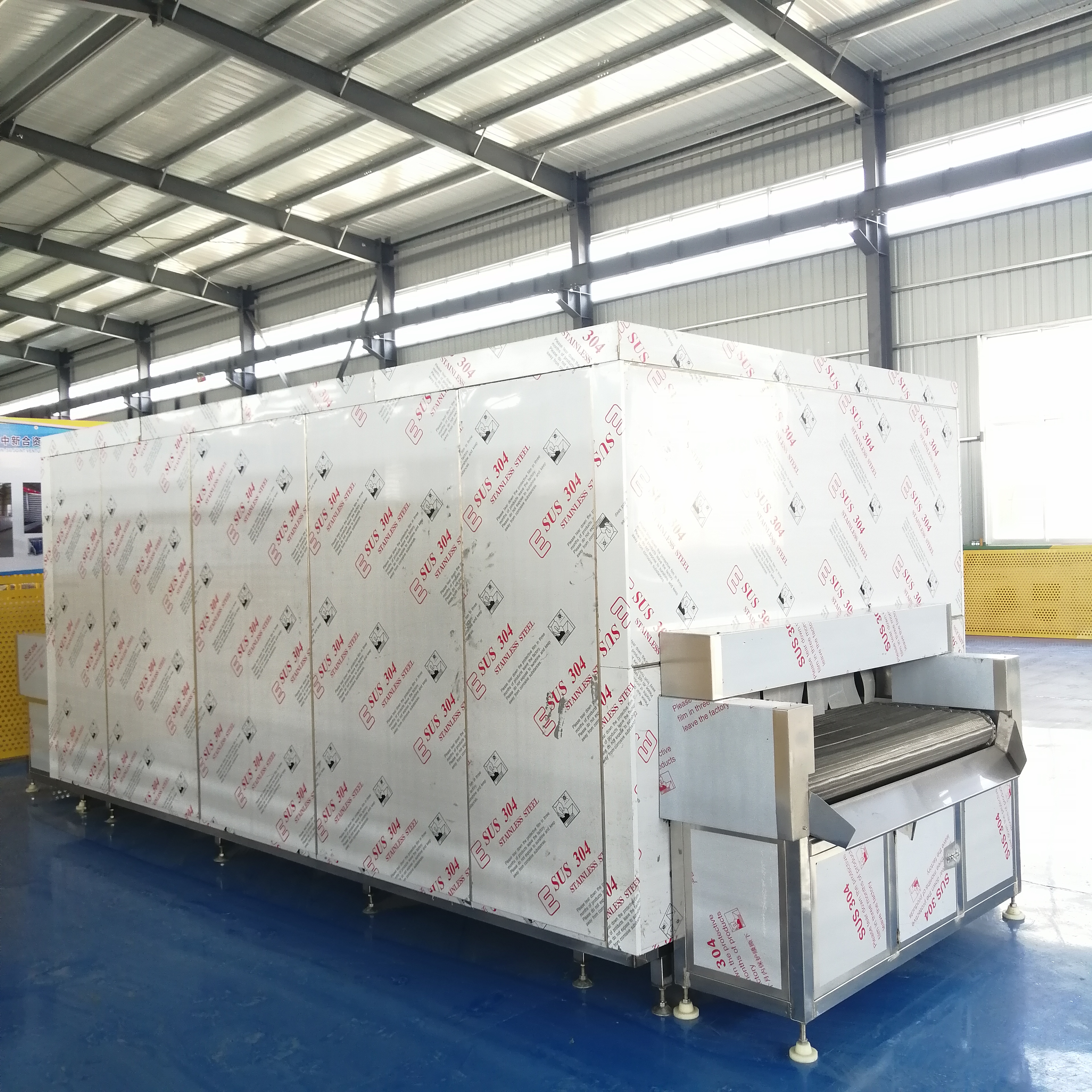

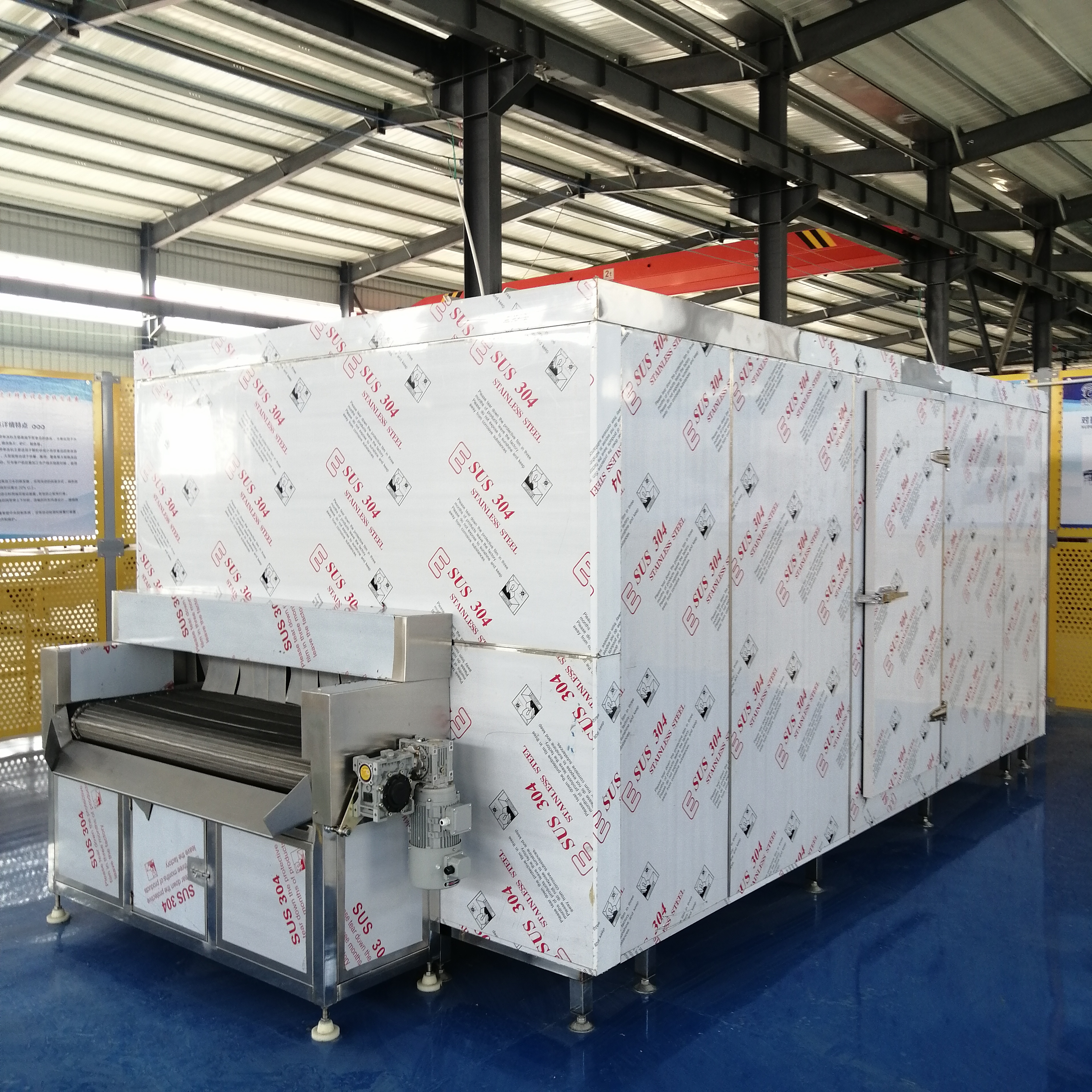

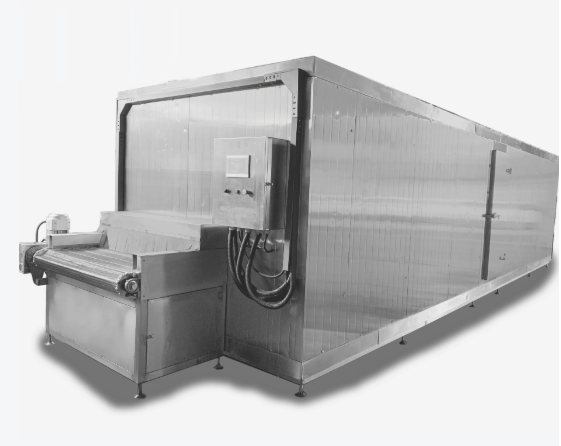

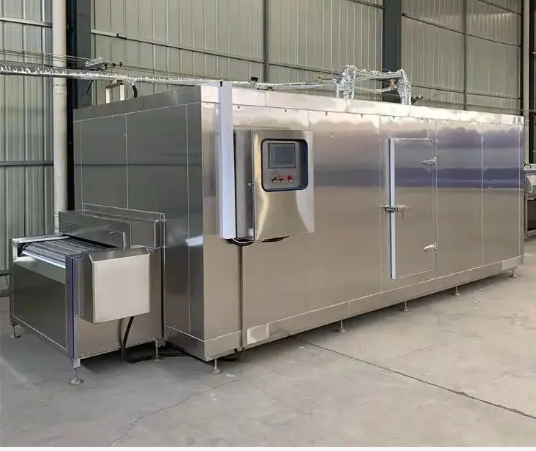

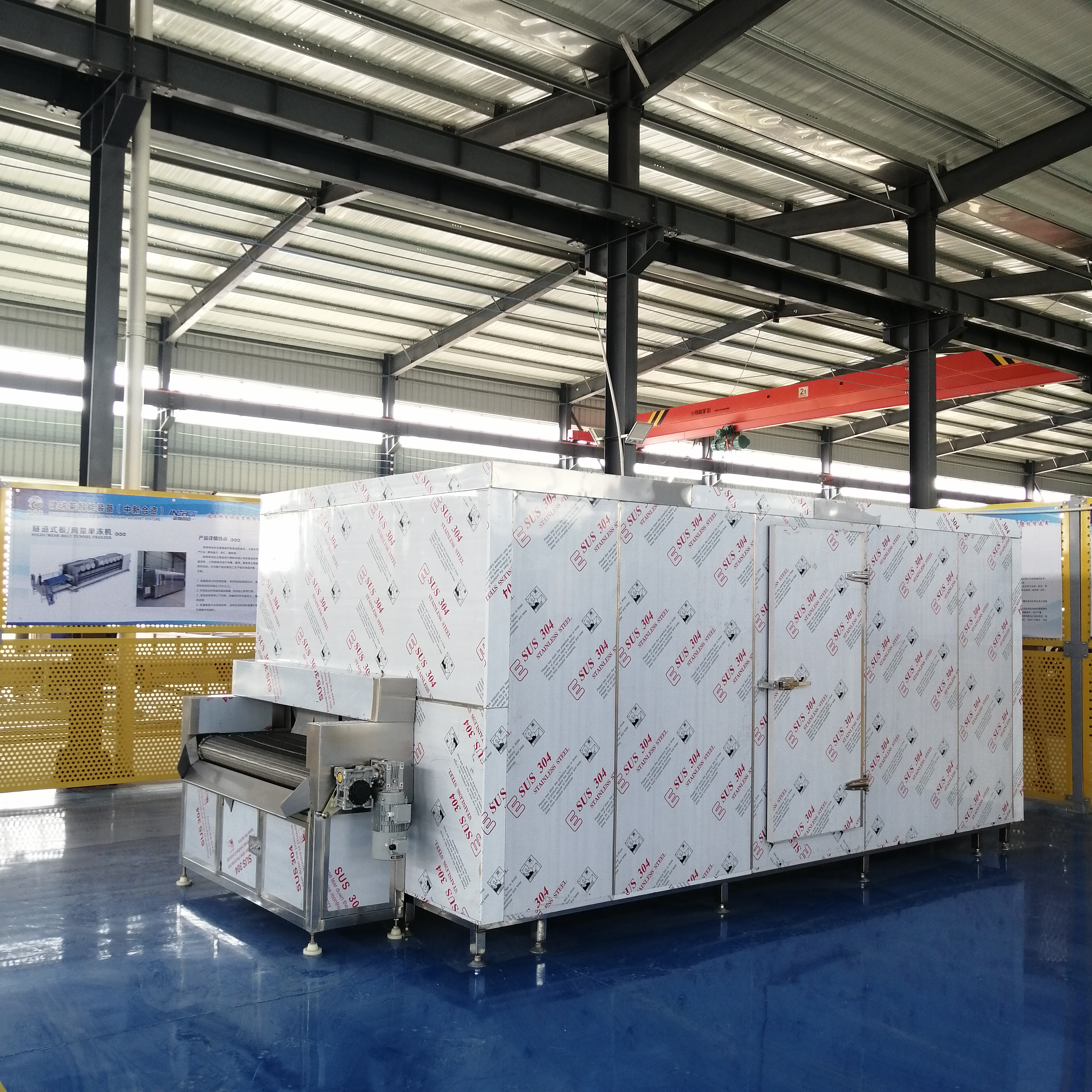

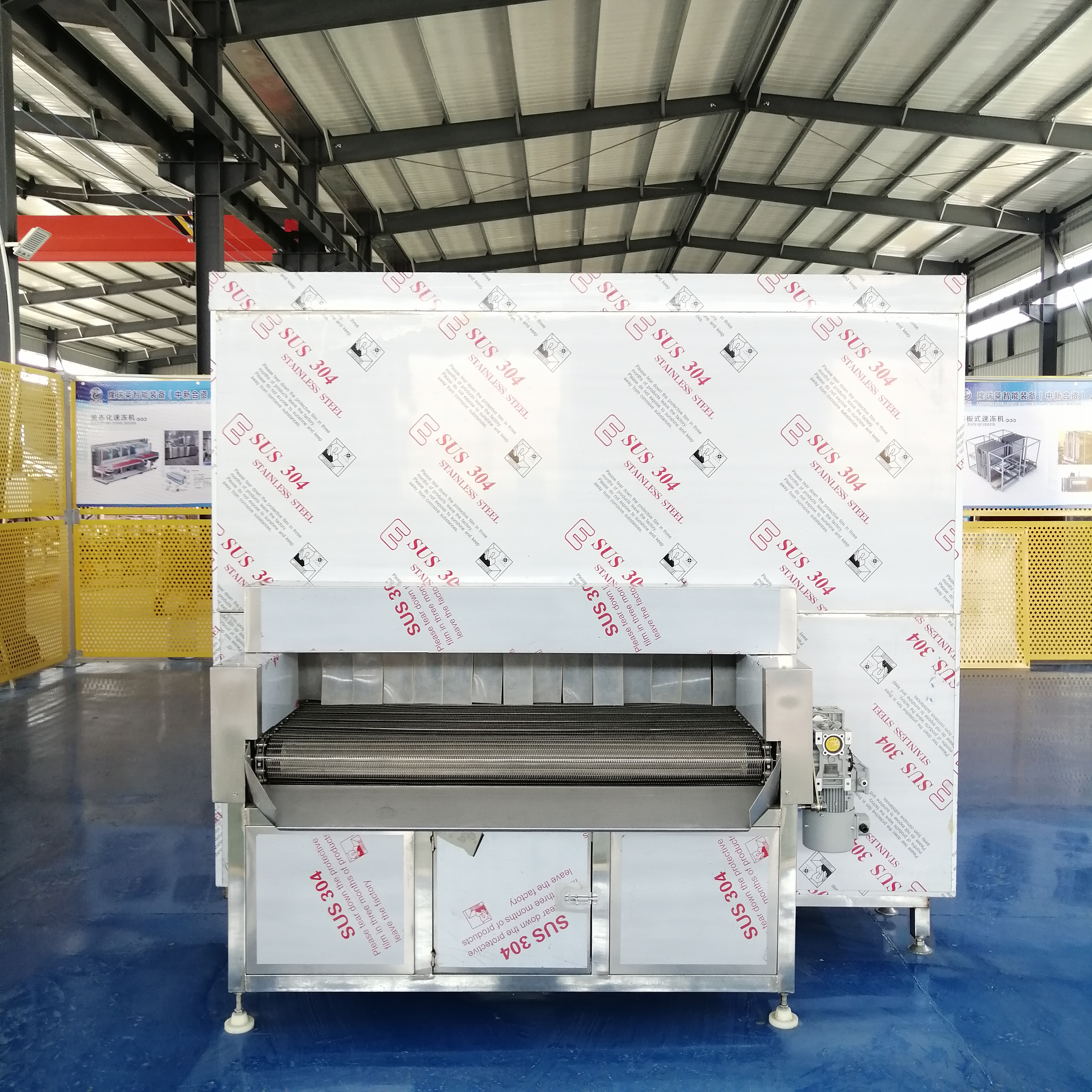

TUNNEL IQF QUICK FREEZER
Product Description
1.Use imported PIC controller
2.Small size, energy saving, reliable performance
3.Simple structure, convenient operation, long service life
4.Compressed by imported equipment and stainless steel spring wire, the surface is flat, the value of the mesh belt can be selected according to the requirements
5.Adopt heat wave blowing method, high freezing efficiency
6.Single or double mesh belt combination can be selected according to output requirements
7.Use water flushing to ensure cleanliness and hygiene
8.The imported frequency converter realizes stepless speed regulation, and the freezing time of frozen products can be adjusted continuously according to the needs, which can be adapted to the processing of various frozen products.
9.The library body is made of rigid polyurethane foam, which has good thermal insulation performance. The inner and outer brackets and the inner and outer brackets of the library are made of stainless steel, which is easy to clean.
|
Model |
Dreezing capacity(KG/H) |
Cold consumption(KW) |
Installed power(KW) |
Length |
value |
Height |
Mesh belt value |
|
IQF -100 IQF-100 |
100 |
15 |
2.3 |
7 |
1.5 |
2.1 |
1 |
|
IQF -150 IQF-150 |
150 |
21.5 |
3 |
8 |
1.8 |
2.2 |
1.3 |
|
IQF -300 IQF-300 |
300 |
43.5 |
6.5 |
12 |
2.3 |
2.3 |
1.8 |
|
IQF -500 IQF-500 |
500 |
75 |
10.3 |
13.5 |
3 |
2.5 |
2.5 |
|
IQF -1000 IQF-1000 |
1000 |
142 |
19.8 |
21.5 |
3 |
2.5 |
2.5 |
|
IQF -2000 IQF-2000 |
2000 |
278 |
38 |
29.2 |
4.1 |
2.5 |
2.5 |
1. Inlet frame
2. Insulation panel
3. Evaporator
4. Fan
5. Air deflector
6. Drive reducer
7. Inside passage
8. ss supportor
9. Outlet frame
10. Electric control panel
11. Mesh belt
Structure Drawing
1. Inlet frame
2. Insulation panel
3. Evaporator
4. Outlet frame
5. Centrifugal fan
6. Drive reducer
7. Air deflector
8. Electric control panel
9. Inside passage
10. Mesh belt
